UPS TIGRAplus-B-1K

True On Line double conversion Pure Sine UPS with high efficiency suitable for sensitive electronics.

  • Stock: Nu este disponibil
  • SKU: 08.372.021
2.032,94Lei
Cu TVA
Fără TVA: 1.694,12Lei
Data estimata de livrare
între 24.Oct.2026 și 04.Nov.2026
Comenzile sunt expediate în 2 zile.
Econt Speedy
Verifica Politica de Livrare și Returnare

RETUR 365 ZILE

Clientul plătește costurile de transport Vezi detalii

PLĂȚI SIGURE
    Vezi detalii

The uninterruptible power supply (UPS) is used to supply power to a device when the main power shuts down, as well as to protect that device from surges, undervoltage, overvoltage, etc. In order for a UPS to be suitable for sensitive electronics or devices containing them, the power output needs to be in the form of a sine wave. The TIGRA series are all of that and much more.

TIGRA plus offer full protection from:

  • Power failures
  • Power surges
  • Undervoltage
  • Overvoltage
  • Frequency variation
  • Switching Transients
  • Line Noise
  • Harmonic Distortion

Applications:

  • IT Corporate sensitive application networks
  • Servers, routers, switches, recording devices
  • Telecommunication installations
  • VoIP, IT security appliances
  • Surveillance Installations (Cameras, records keeping equipment)
  • Banking Systems
  • Medical analyzers and diagnostic systems
  • Manufacturing electromechanical control systems
  • Production quality monitoring systems
  • Electronically controlled heating devices such as pellet stoves, pellet boilers, pellet burners

TIGRA plus specifications

  • True On Line double conversion technology
  • User friendly and comprehensive LCD
  • Compact dimensions for installatioin in places with limited space
  • Wide input voltage range (100 - 300 VAC)
  • Precise Output voltage regulation
  • High quality long life 12V-9Ah batteries
  • Fast recharging time (< 4 hours) to 90% battery capacity
  • ECO and Advanced ECO mode for higher efficiency

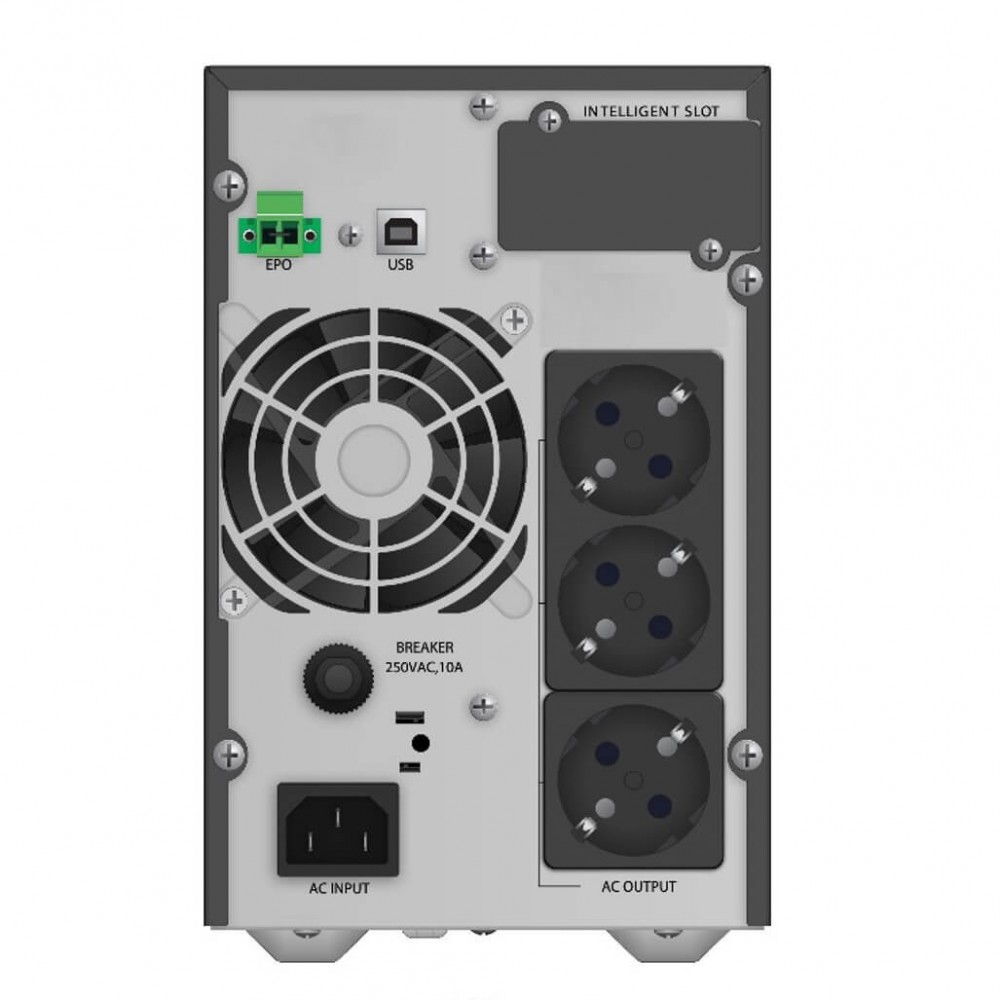

  • Schuko receptacles for easy installation
  • Emergency Power Off function (EPO)
  • Pure Sine wave Output
  • USB connectivity port included
Caracteristici
Greutate (kg) 9.2000
Adâncime (mm) 356
Lățime (mm) 144
Înălțime (mm) 228
Priza 3 Schuko
Capacitate 1000VA / 900W
Interval de tensiune de intrare 100 - 300 VAC
Intervalul de frecvență de intrare (Hz) 45 - 55 / 54 - 66
Tensiunea statică a comutatorului by-pass (Intrare) [VAC] 230 ± 5%
Tensiunea statică a comutatorului by-pass (Intrare) [Hz] 50 ± 1
Distorsiune armonica totala ≤ 5%
Factor de putere ≧ 0.99 @ nominal voltage (100% load)
Tensiune de ieșire (VAC) 220/230/240 VAC ± 1%
Reglarea tensiunii AC ± 1%
Frecventa [Hz] 50 or 60 ± 0.5
Distorsiune armonică ≦ 1 % THD (Linear Load) ≦ 5 % THD (Non-linear load)
Tipul bateriei 2 x 12V 9Ah
Timpul tipic de reîncărcare 4 hours recover to 90% capacity
Incarcare curenta (Max) [A] 1.5
Tensiune de încărcare 27.4 VDC ±1%
Oprire de urgență Yes
Nivelul de zgomot (dB) 40 - 50
Altitude up to 1000m without derating
