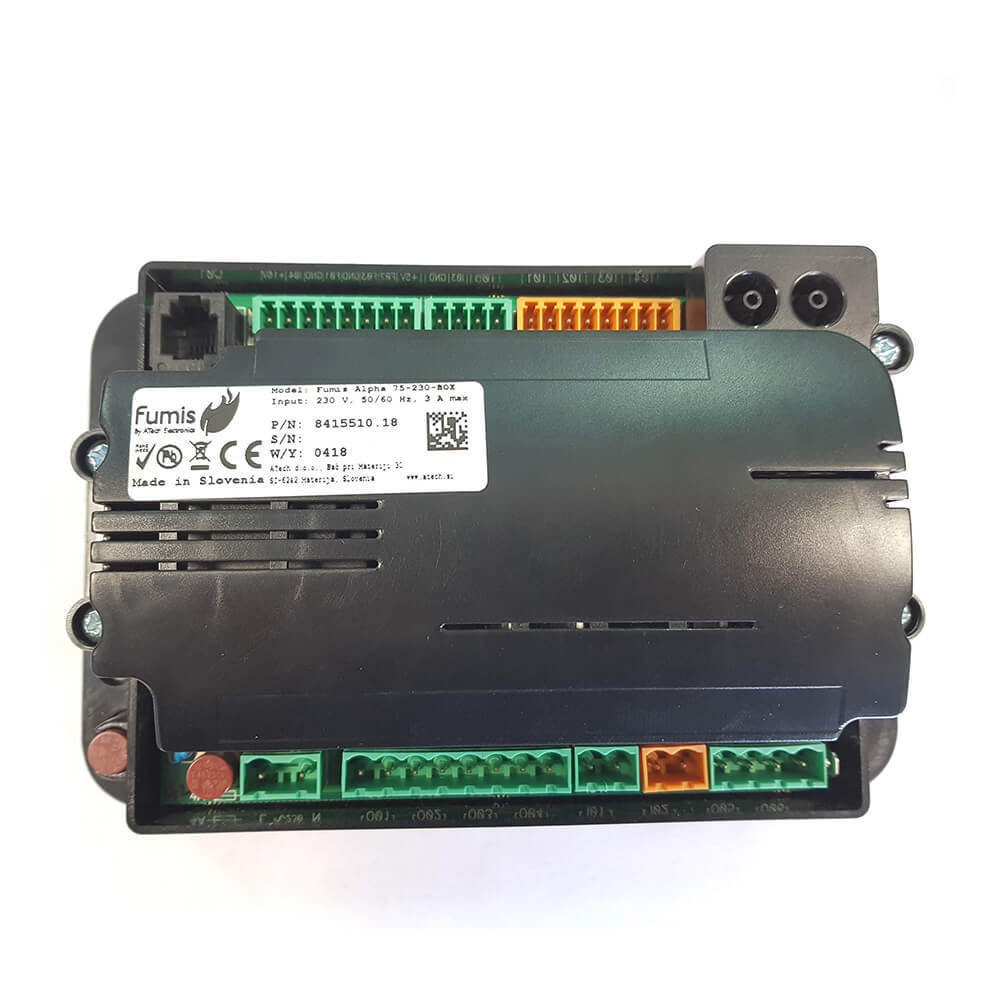

Placa de baza Fumis Alpha 75 pentru sobele Eco Spar Auriga B 25kW

Fumis Alpha 75 is a combustion control solution for pellet stoves and boilers. Its characteristic and intuitive design and its customization options differentiate it from all competitors. The use of Flow-Control combustion control makes the devices using this controller model more efficient, saving more fuel and diminishing emissions. With Flow-Control the pellet stove (or pellet boiler) operates at optimum efficiency without fine-tuning at installation

Advantages

• User friendly design;
• More efficient combustion process;
• Air flow meter which optimizes burning
• Control of circulation pump;
• Fuel-saving combustion;
• Control of exhaust gas fan;
• Control of ambient fan (for air pellet stoves);
• Reduced emissions;
• 3 settings for pellet quality;
• Weekly programmer;
• Remote control;
• Wi-Fi connectivity (optional).

Technical characteristics:

• 5 multifunction triac outputs 240VAC 1 A
• 1 relay output 240VAC 3A (700W max)
• 1 relay output 240VAC 1A (240W max)
• 2 multifunction inputs NTC 10k (water/air temperature sensors)
• 2 thermocouple input type K (combustion gases temperature sensors)
• 2 multifunction sensor input (fan speed sensor and pellet level)
• 2 multifunction digital iput (for external thermostat and open door)
• 1 modulated water pump output
• 2 safety input (safety temperature switch STB, safety pressure switch, 230 VAC)
• serial communication connector
