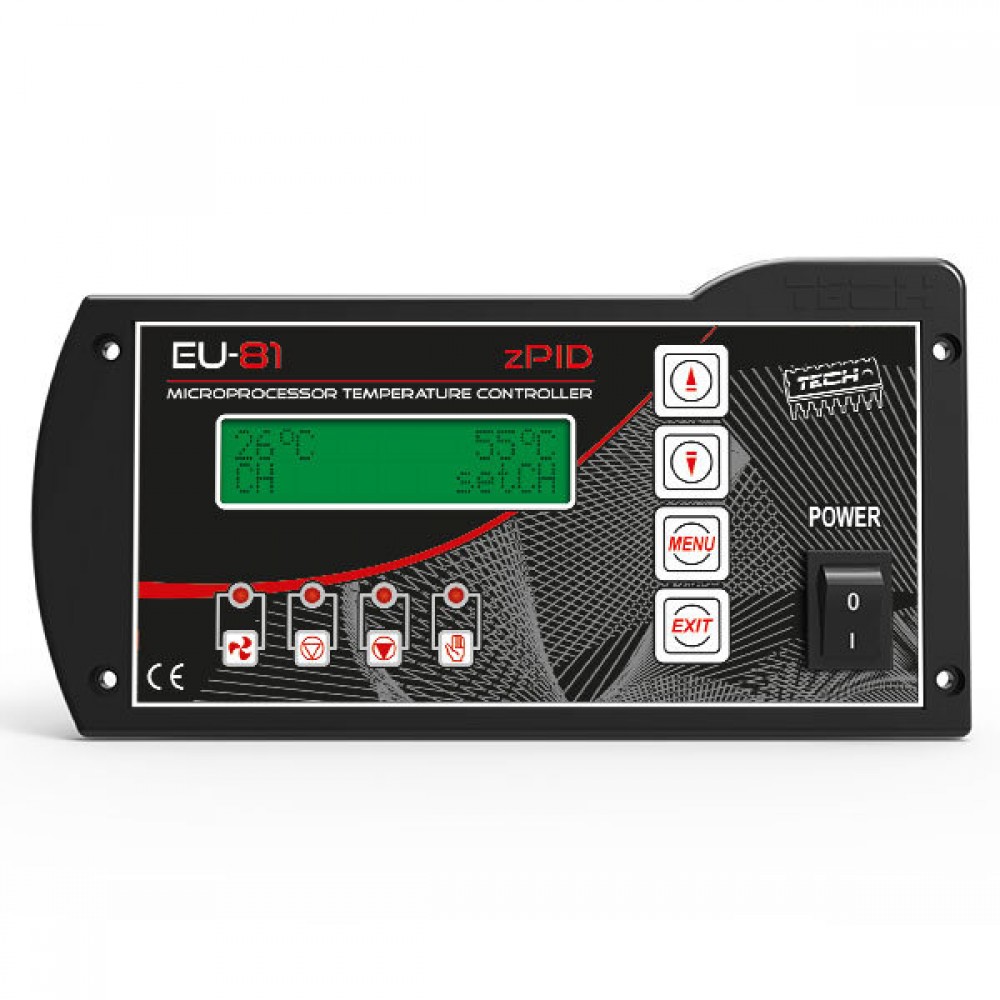

Controller TECH, EU-81 zPID

Mounted in central heating boilers MAT BW Power series.

  • Stock: Nu este disponibil
  • SKU: 13.449.004
1.013,35Lei
Cu TVA
Fără TVA: 844,46Lei
Adaugă în Coș
Anchetă
Adaugă la Favorite Compară acest Produs
Data estimata de livrare
între 21.Sep.2026 și 02.Oct.2026
Comenzile sunt expediate în 2 zile.
Econt Speedy
Verifica Politica de Livrare și Returnare

RETUR 365 ZILE

Clientul plătește costurile de transport Vezi detalii

PLĂȚI SIGURE
    Vezi detalii

EU–81 zPIDtemperature regulator is intended for operating CH boilers. It controls the water circulation pump, hot usable water pump and the fan. Four optional modes of the pumps' operation: house heating, boiler priority, parallel pumps, summer mode. The controller's casing is adjusted to be assembled in the boiler's installation.

Functions performed by the controller:

  • - control of the fan, CH pump and HCW pump
  • - the possibility of connecting room regulator

Equipment of controller:

  • - LCD display
  • - CH temperature sensor and HCW sensor
  • - exhaust gas temperature sensor
  • - has temperature protection (thermal overload relay)
  • - panel casing for installation of the boiler, made of high quality materials resistant to high and low temperatures
  • - possibility of installation on the boiler in OM-01 casing
Caracteristici
Greutate (kg) 1.0000
Alimentare cu energie electrică (V/Hz) 230/50
Ambient Min - max T [°C] 5÷50
Consum de energie (W) 5
Precizia măsurătorii [°C] 1
Pompa CH max. sarcina de ieșire [A] 0.5
Sarcina de ieșire a ventilatorului [A] 0.6
Siguranta [A] 2×3.15
Domeniul de măsurare a temperaturii [°C] 0÷85
